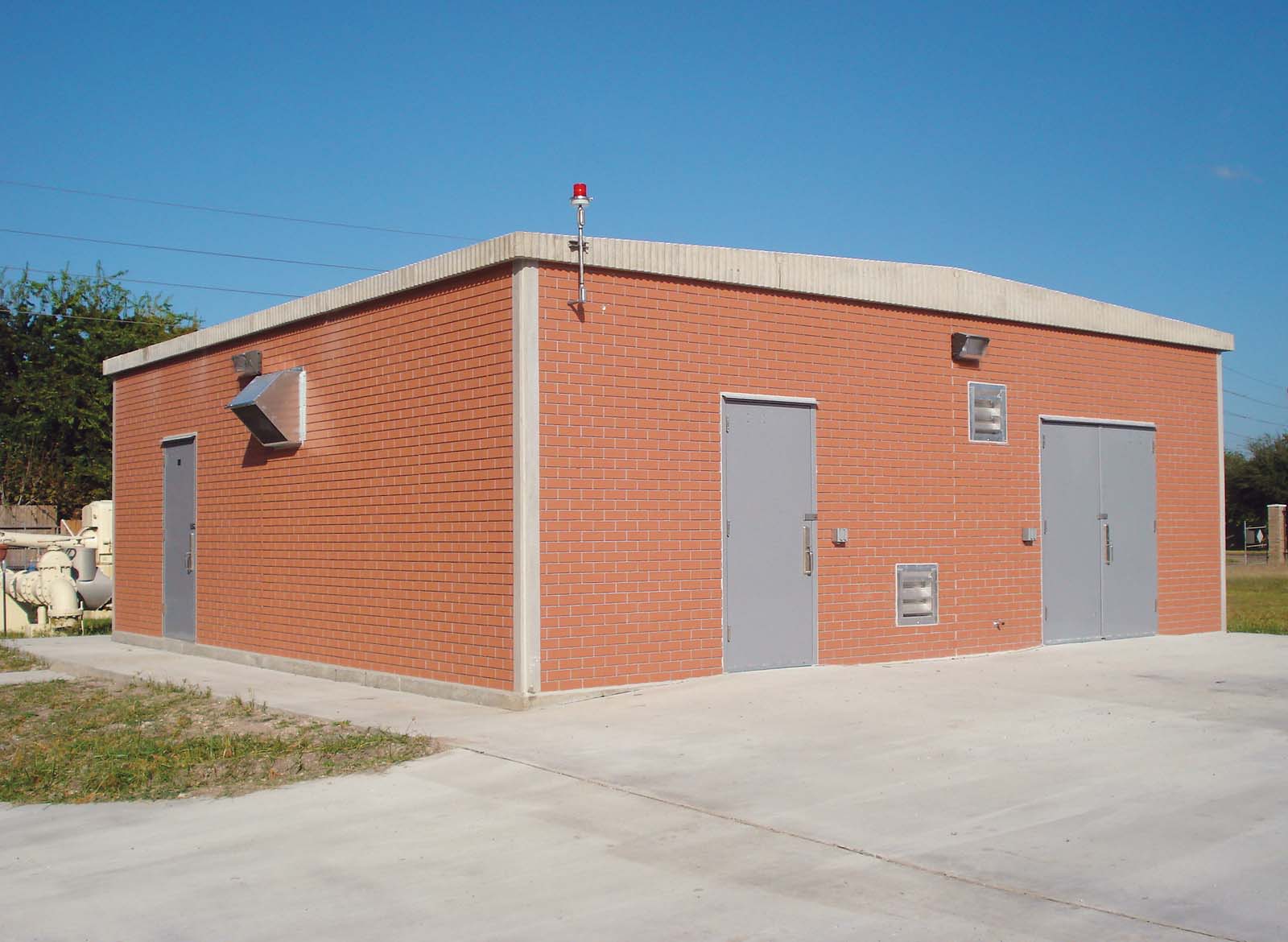

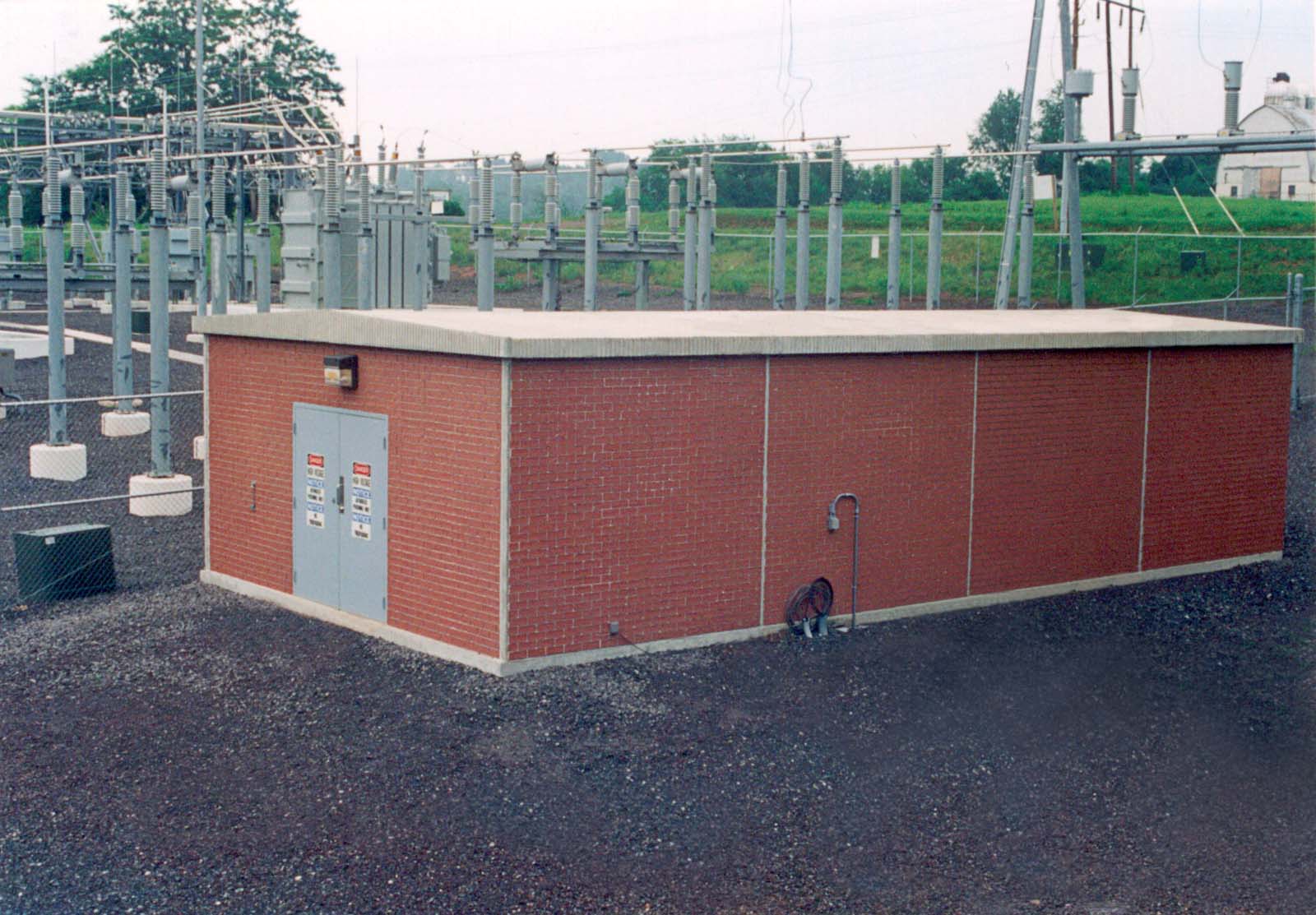

Electro-mechanical building brick
Tile covered precast building
Workers installing a precast concrete building

Precast Electro-Mechanical Buildings by Easi-Set and Easi-Span

Easi-Set and Easi-Span concrete buildings can be fitted for electro-mechanical applications. Our weather tight buildings can be customized to accommodate your systems requirements. These buildings can be manufactured with custom openings to accommodate equipment and wiring. The security and durability of these buildings makes them ideal for remote and unattended locations. These versatile buildings can be delivered pre-assembled and pre-outfitted, or site-assembled around existing equipment. If you are a MEP engineer or offer MEP services these precast buildings are perfect for you.

A Range of Options

These precast concrete electro-mechanical buildings come in a large range of sizes that accommodate many different scenarios and can have many different purposes. They can be used as storage sheds, restrooms, pump houses, guard houses, or concession buildings. The possibilities are endless. Dimensions of our Easi-Set electro-mechanical buildings are available from 10' x 12' to 12' x 20'. We also offer Easi-Span buildings which are available in larger sizes from 20’ x 20’ up to 40’ x 250’ 10”. The smaller buildings are plant-assembled and transported in one piece to the site, while larger buildings are assembled on-site.

Tough Structure

Easi-Set and Easi-Span electro-mechanical buildings are heavy-duty. They are made with a patented second-generation, post-tensioning system that applies internal pressure within the floor and roof panels using high-strength sheathed strands laid out in a circular pattern and cast into the concrete. They are then mechanically stressed to 30,000 PSI, adding increased strength to the panels preventing cracking and water infiltration. They also feature tamper-proof hinges and steel doors.

Getting Started

If you are interested in learning more about precast concrete electro-mechanical buildings, all it takes is a phone call (or an email.) We recommend getting us involved early so we can lend our expertise to your project. We have an in-house design team, engineers, and technical staff with extensive experience and can help provide the best and most cost-effective solution for your needs. And, if you are in the area, we welcome you to take a tour of our plant, to see samples of our products and learn how we produce the high-quality precast concrete electro-mechanical buildings.

When you’re looking for high-quality storage buildings that meet exacting standards, you can count on Easi-Set precast concrete storage buildings from Leesburg Concrete. Call us at 352.787.4177 or email us today to get started on your project.

Request a Quote






Upload a File


File(s) size limit is 20MB.





EASI-SET Standard 1012 Tapered Roof
Width
INT: 9 ft 6 in
EXT: 10 ft
Length
INT: 11 ft 6 in
EXT: 12 ft
Height
INT: 8 ft
EXT: 8 ft 8 in
Exterior Wall Thickness (min)
4 in

Roof Overhang
3 in

EASI-SET Standard 1012 Gabled Roof
Width
INT: 9 ft 6 in
EXT: 10 ft
Length
INT: 11 ft 6 in
EXT: 12 ft
Height
INT: 7 ft 6 in
EXT: 9 ft 10-3/4 in
Exterior Wall Thickness (min)
4 in

Roof Overhang
6 in

EASI-SET Standard 1216 Tapered Roof
Width
INT: 11 ft 6 in
EXT: 12 ft
Length
INT: 15 ft 6 in
EXT: 16 ft
Height
INT: 8 ft
EXT: 8 ft 8 in
Exterior Wall Thickness (min)
4 in

Roof Overhang
3 in

EASI-SET Standard 1216 Gabled Roof
Width
INT: 11 ft 6 in
EXT: 12 ft
Length
INT: 15 ft 6 in
EXT: 16 ft
Height
INT: 7 ft 6 in
EXT: 9 ft 10-3/4 in
Exterior Wall Thickness (min)
4 in

Roof Overhang
6 in

EASI-SET Standard 1220 Tapered Roof
Width
INT: 11 ft 6 in
EXT: 12 ft
Length
INT: 19 ft 6 in
EXT: 20 ft
Height
INT: 8 ft
EXT: 8 ft 8 in
Exterior Wall Thickness (min)
4 in

Roof Overhang
3 in

EASI-SET Standard 1220 Gabled Roof
Width
INT: 11 ft 6 in
EXT: 12 ft
Length
INT: 19 ft 6 in
EXT: 20 ft
Height
INT: 7 ft 6 in
EXT: 9 ft 10-3/4 in
Exterior Wall Thickness (min)
4 in

Roof Overhang
6 in


EASI-SPAN Standard 2020

Width

INT: 19 ft 4 in
EXT: 20 ft

Length

INT: 19 ft 4 in
EXT: 20 ft

Height

INT: 8 ft 11-1/2 in
EXT: 10 ft 5 in

Exterior Wall Thickness (min)
Roof Overhang

EASI-SPAN Standard 2430

Width

INT: 23 ft 4 in
EXT: 24 ft

Length

INT: 29 ft 4 in
EXT: 30 ft

Height

INT: 8 ft 11-1/2 in
EXT: 10 ft 6 in

Exterior Wall Thickness (min)
Roof Overhang

EASI-SPAN Standard 3030

Width

INT: 29 ft 4 in
EXT: 30 ft

Length

INT: 29 ft 4 in
EXT: 30 ft

Height

INT: 8 ft 11-1/2 in
EXT: 10 ft 8 in

Exterior Wall Thickness (min)
Roof Overhang

EASI-SPAN Standard 4040

Width

INT: 39 ft 4 in
EXT: 40 ft

Length

INT: 39 ft 4 in
EXT: 40 ft

Height

INT: 9 ft 11-1/2 in
EXT: 11 ft 11-1/2 in

Exterior Wall Thickness (min)

Roof Overhang

EASI-SPAN Expandable 40100

Width

INT: Up to 39 ft 4 in
EXT: Up to 40'

Length

INT: Up to 99 ft 4 in
EXT: Up to 250 ft 10

Height

INT: 9 ft 11-1/2 in
EXT: 11 ft 11-1/2 in

Exterior Wall Thickness (min)
Roof Overhang
